Made in the USA — HF Band

RF Power & SWR Meter

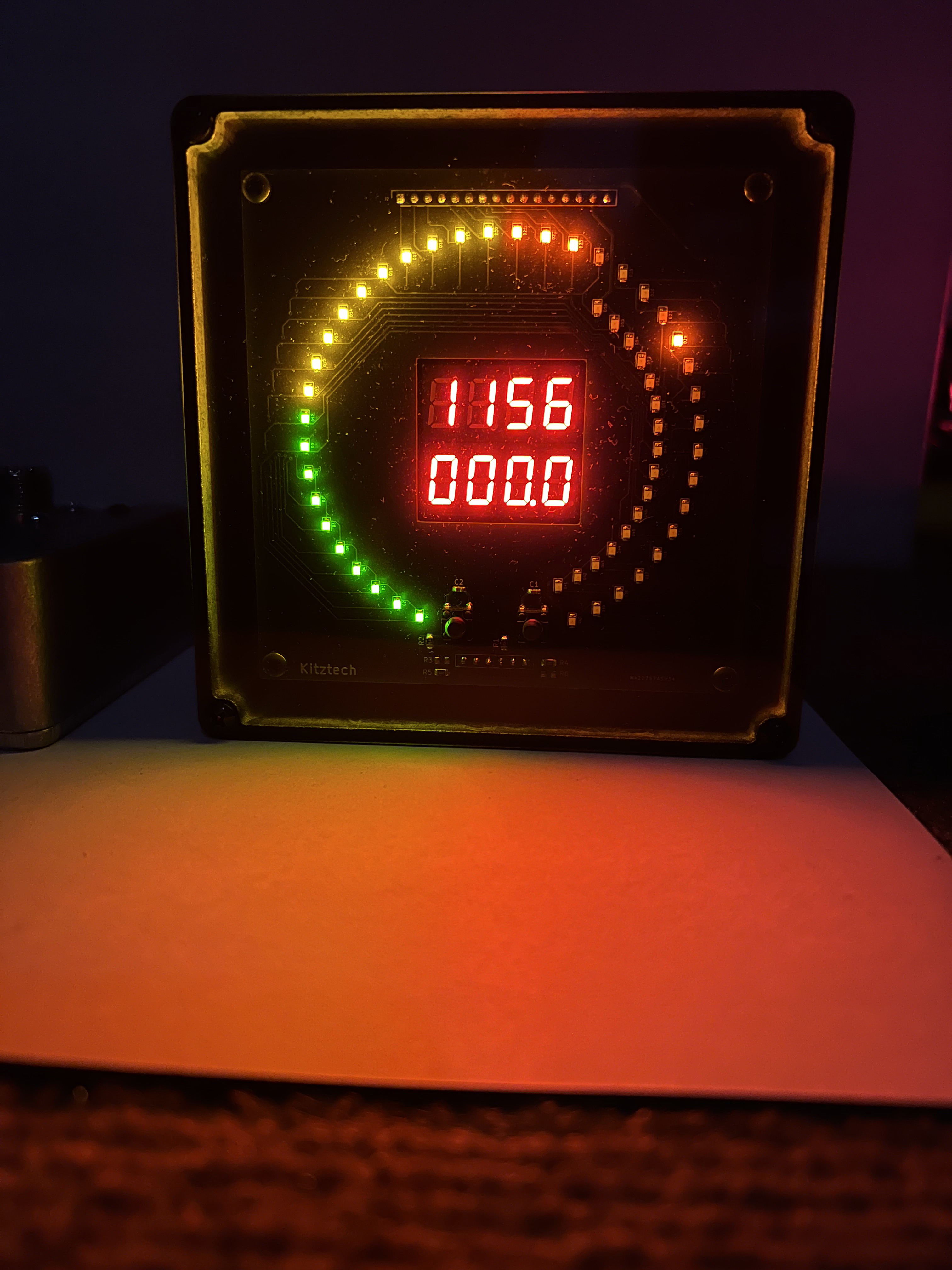

A microprocessor-controlled digital RF power and SWR meter covering the full HF band from 1 to 55 MHz, with a separate display and sensor unit. Handles 0–2000 watts with greater than 5% accuracy via a 12-bit A/D converter — suited for everything from QRP antenna tuning (as little as 1 watt) up to high-power HF amplifiers. Built to the same quality standards as all Kitz Technologies products — right here in the USA.

Features

• Microprocessor controlled with separate display and sensor unit
• 12-bit analog-to-digital converter — greater than 5% accuracy
• Digital LED display shows both RF power and SWR simultaneously
• Programmable to display forward and reverse power
• Programmable peak & hold power or average power modes
• Circular LED bar graph for RF power with dedicated peak hold LED
• Bar graph shows peak and average power at the same time
• Bar graph full-scale programmable from 100W to 2000W in 100W increments
• Inner LED bar graph for SWR in reverse direction — similar to cross-needle displays
• Use for antenna tuning with as little as 1 watt
• Includes power adapter and display connecting cables

Specifications

RF Power & SWR Meter Technical Specs
Frequency Range	1 MHz – 55 MHz (HF Band)
Power Range	0 – 2000 Watts
A/D Converter	12-bit (greater than 5% accuracy)
Measurements	Forward Power, Reverse Power & SWR
Display	Digital LED + Circular LED Bar Graph
Bar Graph Full Scale	Programmable 100W – 2000W (100W increments)
Power Modes	Peak & Hold or Average Power (programmable)
Display Unit Dimensions	4.75" × 4.75" × 2.25"
Display Finish	Powder Coated
Minimum Usable Power	1 Watt (for antenna tuning)
Band	HF
Compatible With	Ham Radio Transmitters & HF Amplifiers
Includes	Power Adapter & Display Connecting Cables
Country of Origin	Made in the USA
Condition	New

Questions about this meter? Call us at 920-233-3974 or email sales@kitztech.com — we're happy to help.
