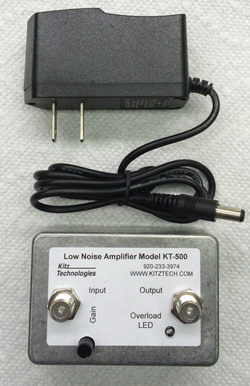

KT-500 Variable Gain TV Amplifier
The KT-500 provides 0–36 dB of adjustable gain — our widest range. A built-in overload LED and overload-resistant design means it handles locations near strong transmitters just as well as very distant rural installs. Built-in FM trap keeps VHF reception clean. Optimized for channels 7–51.
Specifications
| KT-500 Technical Specs | |
|---|---|
| Bandwidth | 50 MHz – 805 MHz (Optimized Ch. 7–51) |
| Noise Figure | 0.85 dB |
| Gain | 0–36 dB (Adjustable) |
| FM Filter | Built-in FM Trap |
| Overload Protection | Overload Resistant + LED Indicator |
| Impedance | 75 ohms (Input & Output) |
| Case | Fully Shielded Aluminum, 3.125" × 2.125" × 1" |
| Power | 7–14V DC @ 70 mA (supply included) |
| Warranty | 1 Year |
Not sure which version to choose? Standard vs Coax explained →
Choose Your Version
KT-500 — Standard Indoor
AC-powered indoor amplifier, power supply included
$100.00
KT-500-COAX — Mast Mount
Coax-powered weatherproof mast mount amplifier
$110.00
✓ 10-Day Money-Back Guarantee if reception doesn't improve
Questions? Call 920-233-3974 — we'll help you pick the right version.
